Industrial High Brightness LCD Panel

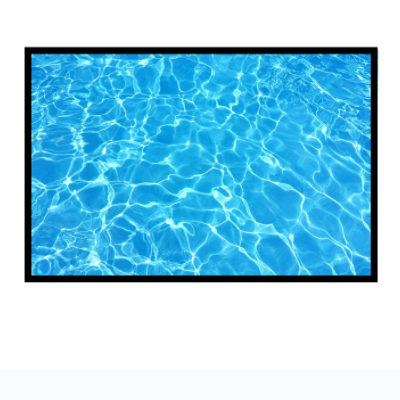

75 inch industrial 3000 nits high brightness TFT LCD panel

75 inch industrial 3000 nits high brightness TFT LCD panel is supplied for commercial display projects that need stable image quality, reliable structure, and practical after-sales support.

Best for: Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

Screen size: 75 inch
Brightness: 3000 nits, 3000 cd/m2
Application: Commercial LCD

Send screen size, application, destination country, and target delivery time for an accurate project quotation.

Configuration support
Pre-shipment inspection
Spare-parts planning

Technical Overview

Key Product Specifications

Screen Size	75 inch
Brightness	3000 nits, 3000 cd/m2
Resolution	Confirm native resolution by size and model
Mounting / Structure	Wall, open-frame, floor-standing, or project-specific options
Control System	Matched to content, connectivity, and project requirements

How to read and verify these specifications

The information on this page is compiled from the available model content and project configuration data maintained by Shangxian Display. Values such as brightness, refresh rate, IP rating, cabinet structure, control system, warranty, and certificates can vary by model and project.

Confirm the final specification sheet and quotation before placing an order. Review our quality control process.

Selection Guide

Project Fit And Buying Inputs

Recommended Use

Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

Confirm Before Selection

Confirm diagonal size, brightness, native resolution, operating hours, orientation, enclosure, mounting, and media connectivity.

Quotation Scope

Final specifications, packing, spare parts, lead time, warranty, and certificates are confirmed in the project quotation.

Read Full Product Description

What is a 75 inch industrial 3000 nits high brightness TFT LCD panel?

A 75 inch industrial 3000 nits high brightness TFT LCD panel is an advanced display technology designed for commercial and industrial applications. Equipped with a 75 inch diagonal screen size, it is capable of delivering an unparalleled visual experience. The panel’s 3000 nits high brightness output ensures striking visibility, providing clear and crisp images even under direct sunlight. The TFT technology ensures high-quality color reproduction and excellent image precision, making it perfect for diverse applications.

Features of the 75 inch industrial 3000 nits high brightness TFT LCD panel

Here are some noteworthy features that make the 75 inch industrial 3000 nits high brightness TFT LCD panel truly exceptional: High Brightness Output: The panel boasts an impressive brightness level of 3000 nits, making it well-suited for outdoor and high ambient light environments. Wide Viewing Angle: The TFT LCD panel offers wide viewing angles without any color shift or distortion, ensuring that the image quality remains consistent from all viewing positions. Vibrant Color Reproduction: The panel’s color accuracy and contrast ratio make for true-to-life images with vibrant colors and deep black levels. Robust Design: Built with industrial-grade components and materials, the panel is highly durable and can tolerate harsh operating conditions such as extreme temperatures and high humidity. Energy Efficient: Utilizing LED backlight technology, the panel offers low power consumption while maintaining high brightness levels. Versatile Connectivity: The display supports various input sources such as HDMI, DVI, VGA, and DP, making it compatible with a wide assortment of devices and digital signage applications. Customization Options: Since the product is designed for industrial use, it offers various customization options, including touch screen capabilities, protective glass, and size adjustments depending on customer requirements.

Application of the 75 inch industrial 3000 nits high brightness TFT LCD panel

The versatility and outstanding features of the 75 inch industrial 3000 nits high brightness TFT LCD panel make it suitable for a broad range of applications. Some examples include: Digital Signage: Its extraordinary brightness and large size make it perfect for outdoor billboards, advertising displays, and promotional kiosks in high-footfall areas. Transportation: Displaying real-time information in airports, train stations, and bus terminals requires high visibility and wide viewing angles, which are well-addressed by this TFT LCD panel. Industrial Control: With its robust design, the panel can be implemented in control rooms, factories, and other rigorous environments for monitoring and automated control purposes. Education and Training: The panel can enhance learning experiences in schools, universities, and training centers by providing high-quality visuals for presentations, simulations, and interactive lessons. Retail and Hospitality: From in-store advertising to digital menus and interactive directories, the panel brings attention-grabbing visuals and seamless functionality to these sectors.

75 inch industrial 3000 nits high brightness TFT LCD panel Supplier

Technology Co.,Ltd. is a professional LED display and LCD display solution supplier.The 75 inch industrial 3000 nits high brightness TFT LCD panel is a versatile, high-performance display solution designed to cater to a wide array of applications across multiple industries. Its remarkable features and capabilities make it a truly outstanding product in the display technology market.If you need a high-quality High Brightness LCD Panel to perfect your project, please contact us and we will provide you with a complete LCD display customization solution.

Screen Diagonal	75 inch
Brand	Confirmed per project
Model No	RS750QUB-GD30
Active Area	1649.66(W)×927.936(H) mm
Resolution	3840(RGB)×2160, UHD, 59PPI
Physical Size	1684.7（H）970.4(V)64.8(D) mm
Pixel Arrangement	R.G.B. Vertical Stripe
Display Mode	a-Si TFT-LCD, LCM
Contrast Ratio :	1200:1
White Luminance ( Center )	3000 cd/m2 (Typ.) [cd/m2 ]
Optical Response Time	8 (Typ.)(G to G) ms
Nominal Input Voltage	12.0V (Typ.)
Frame Rate	60Hz
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Weight [kg]	31(Typ.)
Interface Type	V-by-One 8 lane , 51 pins
Support Color	1.07B , 89% NTSC
Surface Treatment	Antiglare (Haze 1%),Hard coating (3H)
RoHS Compliance	RoHS Compliance
Temperature Range	-30 ~80 °C
Storage (Non-Operating)	-30 ~ 80 °C

Project Support

Support Before Production And Delivery

Configuration Review

Match the product to viewing distance, brightness, content, installation environment, maintenance access, and control requirements.

Factory Verification

Confirm the approved model, cabinet quantity, accessories, visual checks, and project-specific inspection requirements before shipment.

Delivery Preparation

Review packing, spare parts, shipping information, installation documents, warranty terms, and support contacts in the final quotation.

Applications

Typical Project Applications

Window-facing retail advertising
Outdoor information kiosks and digital signage
Transport and passenger-information displays
Open-frame and custom commercial installations

Project Quotation

Tell Us About Your Project

For a useful comparison, share the screen size, application, viewing distance, installation place, destination country, and target delivery date.

Recommended model and configuration
Commercial quotation and lead-time confirmation
Packing, spare-parts, and shipping planning

Email: info@sxleddisplay.com

WhatsApp: +86 15617669952

Buying Guide

Common Questions Before Quotation

How do I choose the right specification?

Share the screen size, viewing distance, indoor or outdoor environment, content type, and installation method. We can suggest pixel pitch, brightness, cabinet type, and control system options.

Can the product be customized?

Yes. Cabinet size, brightness, installation structure, maintenance direction, packaging, spare parts, and control system can be discussed according to the project.

What should I send for a quote?

Please send product model, screen width and height, usage location, target delivery time, and any drawing or project photo. Clear project details make the quotation faster and more accurate.
