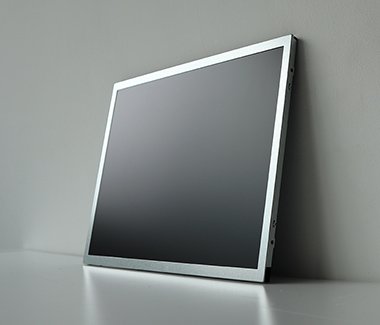

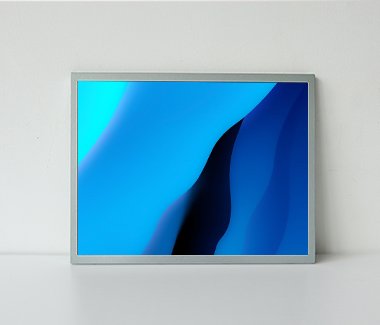

Name: 15 inch military grade high brightness LCD panel
Brand: Shenzhen Shangxian Technology Co.,Ltd.

Technical Overview

Key Product Specifications

Screen Size	15 inch
Brightness	1000 nits
Resolution	Confirm native resolution by size and model
Mounting / Structure	Wall, open-frame, floor-standing, or project-specific options
Control System	Matched to content, connectivity, and project requirements

How to read and verify these specifications

The information on this page is compiled from the available model content and project configuration data maintained by Shangxian Display. Values such as brightness, refresh rate, IP rating, cabinet structure, control system, warranty, and certificates can vary by model and project.

Confirm the final specification sheet and quotation before placing an order. Review our quality control process.

Selection Guide

Project Fit And Buying Inputs

01

Recommended Use

Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

02

Confirm Before Selection

Confirm diagonal size, brightness, native resolution, operating hours, orientation, enclosure, mounting, and media connectivity.

03

Quotation Scope

Final specifications, packing, spare parts, lead time, warranty, and certificates are confirmed in the project quotation.

Read Full Product Description

What is a 15-inch Military Grade High Brightness LCD Panel?

The 15-inch military grade high brightness LCD panel is a specialized display solution designed for rigorous and challenging environments. This panel utilizes advanced technology to provide superior image quality, enhanced brightness, and unmatched durability. Built to withstand harsh conditions, these displays are perfect for military, industrial, and transportation applications.

Features of the 15-inch Military Grade High Brightness LCD Panel

High Brightness and Contrast: The panel offers a brightness level of more than 1000 nits, ensuring excellent visibility even in direct sunlight. The high contrast ratio of 1200:1 provides a sharp and clear image with accurate color reproduction.
Wide Viewing Angles: With a wide viewing angle of 178° both horizontally and vertically, the display provides a consistent and accurate image quality from any perspective.
Rugged Construction: The panel is engineered to withstand extreme temperatures, vibration, shock, and humidity. The ruggedized aluminum housing ensures the display remains operational and protected from environmental challenges.
Military Standards Compliance: Adhering to the most stringent Military standards, the panel is built to meet the performance specifications such as MIL-STD-810 and MIL-STD-461.
Touchscreen Capability: The optional touchscreen feature is available with either resistive or capacitive technology, making it suitable for various applications. The touchscreen enables intuitive user interaction and is responsive even with gloves on.
Flexible Connectivity: Multiple input/output options ensure seamless connectivity to a wide array of devices, including VGA, HDMI, DVI, and DisplayPort interfaces.
Power Efficient: The panel operates on a low power mode, resulting in reduced heat generation and energy consumption.

Applications of the 15-inch Military Grade High Brightness LCD Panel

The 15-inch military grade high brightness LCD panel has a diverse range of applications, including but not limited to:

Military: Suitable for command centers, mapping, and situational awareness in both land-based and naval operations.
Industrial: Heavy machinery control, manufacturing processes, remote monitoring, and harsh environment operations are just a few use cases in the industrial sector.
Transportation: Ideal for enhancing the driver’s experience with in-vehicle systems or control hubs in trains, buses, and maritime vessels.
Energy: Used in control rooms for power plants, substations, or renewable energy monitoring.
Security: Applicable for surveillance systems, access control, and intrusion detection.

15 inch military grade high brightness LCD panel Supplier

Technology Co.,Ltd. is a professional LED display and LCD display solution supplier.The 15-inch military grade high brightness LCD panel is an ideal choice for demanding applications where reliability, brightness, and durability are crucial. Its versatile features allow it to meet the unique requirements of industries such as military, industrial, transportation, energy, and security.If you need a high-quality High Brightness LCD Panel to perfect your project, please contact us and we will provide you with a complete LCD display customization solution.

Screen Diagonal	15 inch
Brand	Confirmed per project
Model No	RS150XGE-GE10
Active Area	261.12(W)×163.2(H) mm
Resolution	1024(RGB)×768, XGA, 85PPI
Physical Size	326.5(W)×253.5(H)×12(D) mm
Pixel Arrangement	R.G.B. Vertical Stripe
Display Mode	a-Si TFT-LCD, LCM
Contrast Ratio :	700:1
White Luminance ( Center )	1000 nits
Optical Response Time	8/17 (Typ.)(Tr/Td) ms
Nominal Input Voltage	3.3V (Typ.)
Frame Rate	60Hz
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)
Weight [g]	835g(Typ.)
Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Support Color	262K/16.2M , 55% NTSC
Surface Treatment	Antiglare,Hard coating (3H)
RoHS Compliance	RoHS Compliance
Temperature Range	-30 ~80 °C
Storage (Non-Operating)	-40 ~ 85 °C

Project Support

Support Before Production And Delivery

01

Configuration Review

Match the product to viewing distance, brightness, content, installation environment, maintenance access, and control requirements.

02

Factory Verification

Confirm the approved model, cabinet quantity, accessories, visual checks, and project-specific inspection requirements before shipment.

03

Delivery Preparation

Review packing, spare parts, shipping information, installation documents, warranty terms, and support contacts in the final quotation.

Applications

Typical Project Applications

Window-facing retail advertising
Outdoor information kiosks and digital signage
Transport and passenger-information displays
Open-frame and custom commercial installations

Project Quotation

Tell Us About Your Project

For a useful comparison, share the screen size, application, viewing distance, installation place, destination country, and target delivery date.

Recommended model and configuration
Commercial quotation and lead-time confirmation
Packing, spare-parts, and shipping planning

Email: info@sxleddisplay.com

WhatsApp: +86 15617669952

Buying Guide

Common Questions Before Quotation

How do I choose the right specification?

Share the screen size, viewing distance, indoor or outdoor environment, content type, and installation method. We can suggest pixel pitch, brightness, cabinet type, and control system options.

Can the product be customized?

Yes. Cabinet size, brightness, installation structure, maintenance direction, packaging, spare parts, and control system can be discussed according to the project.

What should I send for a quote?

Please send product model, screen width and height, usage location, target delivery time, and any drawing or project photo. Clear project details make the quotation faster and more accurate.
