65 Inch 2500-Nit Passenger Information LCD Panel

High Brightness TFT LCD Panel

65 Inch 2500-Nit Passenger Information LCD Panel

65 inch 2500-nit LCD panel for passenger information systems, airports, railway stations, transport terminals, and high-ambient-light installations.

Best for: Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

Screen size
65 Inch
Brightness
2500 nits, 2500 cd/m2
Application
Commercial LCD

Send screen size, application, destination country, and target delivery time for an accurate project quotation.

  • Configuration support
  • Pre-shipment inspection
  • Spare-parts planning

Technical Overview

Key Product Specifications

Screen Size65 Inch
Brightness2500 nits, 2500 cd/m2
ResolutionConfirm native resolution by size and model
Mounting / StructureWall, open-frame, floor-standing, or project-specific options
Control SystemMatched to content, connectivity, and project requirements
How to read and verify these specifications

The information on this page is compiled from the available model content and project configuration data maintained by Shangxian Display. Values such as brightness, refresh rate, IP rating, cabinet structure, control system, warranty, and certificates can vary by model and project.

Confirm the final specification sheet and quotation before placing an order. Review our quality control process.

Selection Guide

Project Fit And Buying Inputs

01

Recommended Use

Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

02

Confirm Before Selection

Confirm diagonal size, brightness, native resolution, operating hours, orientation, enclosure, mounting, and media connectivity.

03

Quotation Scope

Final specifications, packing, spare parts, lead time, warranty, and certificates are confirmed in the project quotation.

Read Full Product Description

What is 65 inch 2500 nits High Brightness TFT LCD Panel for Passenger Information Display?

The 65 inch 2500 nits High Brightness TFT LCD Panel is a state-of-the-art solution designed specifically for passenger information displays in various transportation systems such as airports, train stations, and bus terminals. These panels leverage TFT (Thin-Film Transistor) technology to create crystal-clear images and videos that are easily visible even in brightly lit environments.

Features of 65 inch 2500 nits High Brightness TFT LCD Panel for Passenger Information Display

High Brightness: With a luminance of 2500 nits, this display is optimized for easy readability in high ambient light conditions, which is ideal for both indoor and outdoor applications where sunlight exposure is strong. 65-Inch Screen Size: The large 65-inch screen size provides ample space for displaying crucial information clearly and legibly for commuters, ensuring that they can quickly find the information they need while on the go. Wide Viewing Angle: The TFT technology used in this panel provides a wide viewing angle, allowing passengers to clearly see the display from multiple angles without any significant loss of image quality or brightness. High Resolution: The display comes with high resolution (typically Full HD or 4K, depending on the specific model) to ensure crisp and clear text and images, making it easier for passengers to view essential information at a glance. Robust Build: Designed for longevity and durability, this panel is made of high-quality materials and built with industrial-grade components to withstand the rigors of public transportation environments. Energy Efficiency: The advanced TFT LCD technology used in this panel helps conserve energy, contributing to lower operational costs and a reduced environmental footprint. Customizable: The panel can be customized with additional features such as touch capabilities, housing, or protective glass to fit the unique requirements of different transportation systems.

Application of 65 inch 2500 nits High Brightness TFT LCD Panel for Passenger Information Display

The 65 inch 2500 nits High Brightness TFT LCD Panel is primarily designed to be used in passenger information displays within transportation networks. Some common applications include: Airport Information Displays: These panels can be installed in airport terminals to provide passengers with important information about flight arrivals, departures, gate numbers, and more. Train Station Displays: In train stations, these panels can be used to display train schedules, platform numbers, delays, and other relevant information for commuters. Bus Stop Displays: The high brightness and large format make these panels great for bus stops and bus terminals, keeping passengers informed about bus routes, schedules, and real-time arrival information. Metro/Subway Information Displays: These TFT LCD panels can be installed in metro or subway stations to provide current information about train arrivals, maps, and other essential information. Ferry Terminal Displays: For ferry terminals, these displays can provide passengers with details about sailing times, destinations, and other critical updates.

65 inch 2500 nits high brightness TFT LCD panel for passenger information display Supplier

Technology Co.,Ltd. is a professional LED display and LCD display solution supplier.The 65 inch 2500 nits High Brightness TFT LCD Panel offers an unmatched combination of resolution, brightness, and durability, making it the perfect choice for efficiently communicating vital information in transportation hubs. By providing accurate real-time details to passengers in an easily readable format, these displays significantly improve the overall travel experience.If you need a high-quality High Brightness LCD Panel to perfect your project, please contact us and we will provide you with a complete LCD display customization solution.

Screen Diagonal65 inch
BrandConfirmed per project
Model NoRS650EQC-ND25
Active Area1428.48(W)×803.52(H) mm
Resolution3840(RGB)×2160, UHD, 68PPI
Physical Size1461(H)*843.1(V)*60.3(D)mm
Pixel ArrangementR.G.B. Vertical Stripe
Display Modea-Si TFT-LCD, LCM
Contrast Ratio :1300:1
White Luminance ( Center )2500 cd/m2 (Typ.) [cd/m2 ]
Optical Response Time8/10 (Typ.)(Tr/Td) ms
Nominal Input Voltage12.0V (Typ.)
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [kg]20.5(Typ.)
Interface Type120 pins EPI connector
Support Color1.07B ,
Surface TreatmentAntiglare (Haze 3%), Hard coating (2H)
RoHS ComplianceRoHS Compliance
Temperature Range0 ~50 °C
Storage (Non-Operating)-20 ~ 60 °C

Project Support

Support Before Production And Delivery

01

Configuration Review

Match the product to viewing distance, brightness, content, installation environment, maintenance access, and control requirements.

02

Factory Verification

Confirm the approved model, cabinet quantity, accessories, visual checks, and project-specific inspection requirements before shipment.

03

Delivery Preparation

Review packing, spare parts, shipping information, installation documents, warranty terms, and support contacts in the final quotation.

Applications

Typical Project Applications

  • Window-facing retail advertising
  • Outdoor information kiosks and digital signage
  • Transport and passenger-information displays
  • Open-frame and custom commercial installations

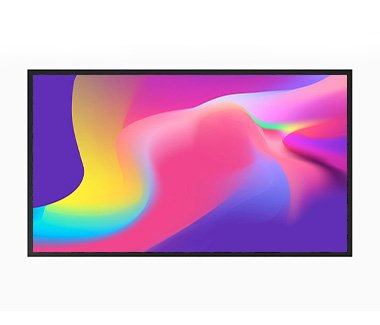

65 Inch 2500-Nit Passenger Information LCD Panel product view

Project Quotation

Tell Us About Your Project

For a useful comparison, share the screen size, application, viewing distance, installation place, destination country, and target delivery date.

  • Recommended model and configuration
  • Commercial quotation and lead-time confirmation
  • Packing, spare-parts, and shipping planning

Email: info@sxleddisplay.com

WhatsApp: +86 15617669952

Add project details for a faster quote (optional)

Buying Guide

Common Questions Before Quotation

How do I choose the right specification?

Share the screen size, viewing distance, indoor or outdoor environment, content type, and installation method. We can suggest pixel pitch, brightness, cabinet type, and control system options.

Can the product be customized?

Yes. Cabinet size, brightness, installation structure, maintenance direction, packaging, spare parts, and control system can be discussed according to the project.

What should I send for a quote?

Please send product model, screen width and height, usage location, target delivery time, and any drawing or project photo. Clear project details make the quotation faster and more accurate.
