43 inch FHD high brightness TFT LCD panel

High Brightness TFT LCD Panel

43 inch FHD high brightness TFT LCD panel

43 inch FHD high brightness TFT LCD panel is supplied for commercial display projects that need stable image quality, reliable structure, and practical after-sales support.

Best for: Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

Screen size
43 inch
Brightness
1000 nits, 3000 cd/m2
Resolution
1920 x 1080

Send screen size, application, destination country, and target delivery time for an accurate project quotation.

  • Configuration support
  • Pre-shipment inspection
  • Spare-parts planning

Technical Overview

Key Product Specifications

Screen Size43 inch
Brightness1000 nits, 3000 cd/m2
Resolution1920 x 1080
Mounting / StructureWall, open-frame, floor-standing, or project-specific options
Control SystemMatched to content, connectivity, and project requirements
How to read and verify these specifications

The information on this page is compiled from the available model content and project configuration data maintained by Shangxian Display. Values such as brightness, refresh rate, IP rating, cabinet structure, control system, warranty, and certificates can vary by model and project.

Confirm the final specification sheet and quotation before placing an order. Review our quality control process.

Selection Guide

Project Fit And Buying Inputs

01

Recommended Use

Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

02

Confirm Before Selection

Confirm diagonal size, brightness, native resolution, operating hours, orientation, enclosure, mounting, and media connectivity.

03

Quotation Scope

Final specifications, packing, spare parts, lead time, warranty, and certificates are confirmed in the project quotation.

Read Full Product Description

What is a 43 inch FHD High Brightness TFT LCD Panel?

A 43-inch Full High Definition (FHD) high brightness Thin Film Transistor (TFT) Liquid Crystal Display (LCD) panel is a cutting-edge display technology that delivers outstanding image quality, high brightness, and impressive reliability. This sophisticated display panel is designed to provide a remarkable visual experience across various applications, ranging from digital signage to industrial and commercial applications.

Features of 43 inch FHD High Brightness TFT LCD Panel

High Resolution The 43-inch FHD high brightness TFT LCD panel is equipped with a 1920 x 1080 resolution, providing crisp, clear, and detailed images. This high-resolution format ensures an enhanced visual experience, as well as improved readability for viewers. High Brightness With a high brightness level of more than 1000 nits, this panel not only produces vibrant colors and deep contrast but also ensures exceptional legibility in bright environments. This makes it ideal for outdoor usage and high ambient light conditions. Wide Viewing Angle Incorporating In-Plane Switching (IPS) technology, the 43-inch FHD high brightness TFT LCD panel has a wide viewing angle that allows vivid and accurate color reproduction even at extreme angles. This feature maintains excellent visibility, ensuring the displayed content is easily visible to a broader audience. Robust Durability Constructed with a high-quality manufacturing process and robust materials, the 43-inch FHD high brightness TFT LCD panel is designed to withstand harsh operating conditions. This includes resistance to temperature fluctuations, humidity, and dust, making it suitable for use in various environments. Energy Efficiency With advanced technology such as LED backlighting, this TFT LCD panel consumes less power compared to traditional CCFL-backlit displays. The lower power consumption not only translates to cost savings but also helps reduce the environmental footprint of the product. Versatile Connectivity The 43-inch FHD high brightness TFT LCD panel offers a range of connectivity options, including HDMI, DisplayPort, and VGA, which allows for seamless integration with various devices and systems. This versatility ensures compatibility with different applications and equipment.

Application of 43 inch FHD High Brightness TFT LCD Panel

The 43-inch FHD high brightness TFT LCD panel can be utilized across a wide array of applications, which include: Digital Signage: Ideal for public information displays, advertising, and promotional content, this high brightness TFT LCD panel ensures information and visual content are clearly visible outdoors as well as in bright indoor environments. Transportation: Airports, train stations, and bus terminals can benefit from the high brightness and excellent visibility of the panel to display schedules, departure and arrival information, and other vital announcements. Industrial Applications: Equipped with a highly durable build, the panel can be used for manufacturing and factory interfaces, providing operators with clear and reliable production information. Educational Institutions: Schools, colleges, and universities can use the panel for multimedia presentations, interactive learning, and video conferencing in lecture halls and classrooms. Retail and Hospitality: The 43-inch FHD high brightness TFT LCD panel is perfect for point-of-sale terminals, kiosks, and digital menu boards to improve customer experience, engagement, and satisfaction.

43 inch FHD high brightness TFT LCD panel Supplier

Technology Co.,Ltd. is a professional LED display and LCD display solution supplier.The 43-inch FHD high brightness TFT LCD panel offers a perfect blend of high-resolution display, superior brightness, and durability, making it an ideal choice for various applications across multiple industries.If you need a high-quality High Brightness LCD Panel to perfect your project, please contact us and we will provide you with a complete LCD display customization solution.

Screen Diagonal43 inch
BrandConfirmed per project
Model NoRS430FHB-ND30
Active Area940.896(W)×529.254(H) mm
Resolution1920(RGB)×1080, FHD, 51PPI
Physical Size 973.8(H)*567(V)*60.3(D) mm
Pixel ArrangementR.G.B. Vertical Stripe
Display Modea-Si TFT-LCD, LCM
Contrast Ratio :1200:1
White Luminance ( Center )3000 cd/m2 (Typ.) [cd/m2 ]
Optical Response Time8 (Typ.)(G to G) ms
Nominal Input Voltage12V (Typ.)
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [kg]7.35(Typ.)
Interface Type51 pins LVDS (2 ch, 8-bit) ,
Support Color16.7M ,
Surface TreatmentAntiglare , Hard coating (3H)
RoHS ComplianceRoHS Compliance
Temperature Range0 ~50 °C
Storage (Non-Operating)-20 ~ 60 °C

Project Support

Support Before Production And Delivery

01

Configuration Review

Match the product to viewing distance, brightness, content, installation environment, maintenance access, and control requirements.

02

Factory Verification

Confirm the approved model, cabinet quantity, accessories, visual checks, and project-specific inspection requirements before shipment.

03

Delivery Preparation

Review packing, spare parts, shipping information, installation documents, warranty terms, and support contacts in the final quotation.

Applications

Typical Project Applications

  • Window-facing retail advertising
  • Outdoor information kiosks and digital signage
  • Transport and passenger-information displays
  • Open-frame and custom commercial installations

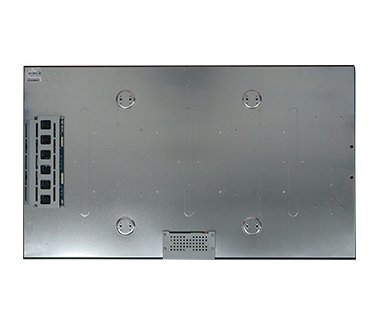

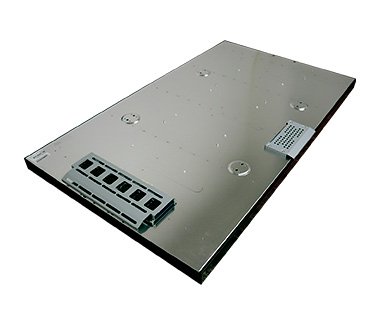

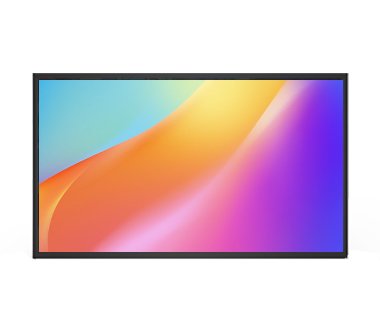

43 inch FHD high brightness TFT LCD panel product view

Project Quotation

Tell Us About Your Project

For a useful comparison, share the screen size, application, viewing distance, installation place, destination country, and target delivery date.

  • Recommended model and configuration
  • Commercial quotation and lead-time confirmation
  • Packing, spare-parts, and shipping planning

Email: info@sxleddisplay.com

WhatsApp: +86 15617669952

Add project details for a faster quote (optional)

Buying Guide

Common Questions Before Quotation

How do I choose the right specification?

Share the screen size, viewing distance, indoor or outdoor environment, content type, and installation method. We can suggest pixel pitch, brightness, cabinet type, and control system options.

Can the product be customized?

Yes. Cabinet size, brightness, installation structure, maintenance direction, packaging, spare parts, and control system can be discussed according to the project.

What should I send for a quote?

Please send product model, screen width and height, usage location, target delivery time, and any drawing or project photo. Clear project details make the quotation faster and more accurate.
