Stretch High Brightness TFT LCD Panel
43.8 inch 1000 nits stretch TFT LCD digital signage
43.8 inch 1000 nits stretch TFT LCD digital signage is supplied for commercial display projects that need stable image quality, reliable structure, and practical after-sales support.
Best for: Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.
- Screen size
- 43.8 inch
- Brightness
- 1000 nits
- Application
- Commercial LCD
Send screen size, application, destination country, and target delivery time for an accurate project quotation.
- Configuration support
- Pre-shipment inspection
- Spare-parts planning
Technical Overview
Key Product Specifications
| Screen Size | 43.8 inch |
|---|---|
| Brightness | 1000 nits |
| Resolution | Confirm native resolution by size and model |
| Mounting / Structure | Wall, open-frame, floor-standing, or project-specific options |
| Control System | Matched to content, connectivity, and project requirements |
How to read and verify these specifications
The information on this page is compiled from the available model content and project configuration data maintained by Shangxian Display. Values such as brightness, refresh rate, IP rating, cabinet structure, control system, warranty, and certificates can vary by model and project.
Confirm the final specification sheet and quotation before placing an order. Review our quality control process.
Selection Guide
Project Fit And Buying Inputs
Recommended Use
Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.
Confirm Before Selection
Confirm diagonal size, brightness, native resolution, operating hours, orientation, enclosure, mounting, and media connectivity.
Quotation Scope
Final specifications, packing, spare parts, lead time, warranty, and certificates are confirmed in the project quotation.
Read Full Product Description

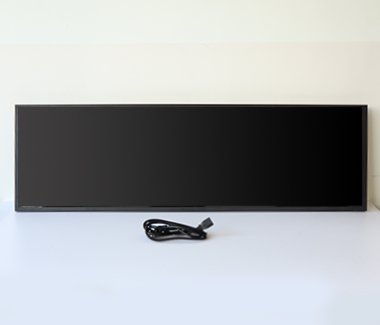

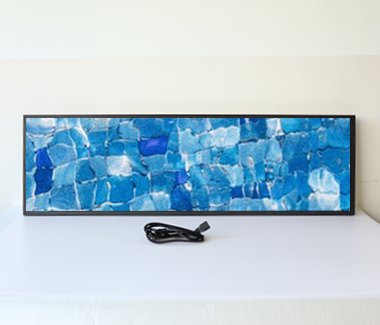

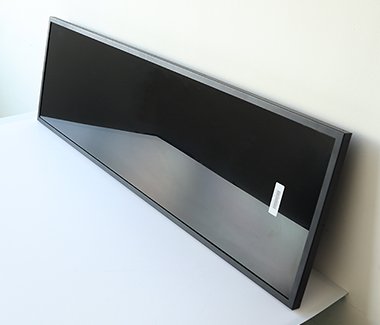

What is 43.8-inch 1000 nits stretch TFT LCD digital signage?
The 43.8-inch 1000 nits stretch TFT LCD digital signage is an ultra-high brightness, slim, and versatile display solution. It is designed for both indoor and outdoor applications, offering clear and vibrant visuals even in direct sunlight. Powered by an advanced TFT LCD technology and LED backlight, this digital signage system delivers stunning image quality and an energy-efficient, low-profile form factor.
Features of 43.8-inch 1000 nits stretch TFT LCD digital signage
- Ultra-high Brightness: The 1000 nits brightness allows the display to provide vivid and lifelike imagery even in direct sunlight or brightly lit environments. The display will remain clear and visible despite the challenges of outdoor lighting conditions.
- Stretch Design & Slim Profile: The 43.8-inch display features a stretch design that offers an elongated form factor ideal for dynamic content presentations. Its slim profile ensures easy installation and integration with other hardware, making it perfect for space-constrained areas.
- Wide Viewing Angle: The 43.8-inch 1000 nits stretch TFT LCD digital signage offers a wide viewing angle of 178 degrees both horizontally and vertically, which maximizes visibility for passersby and ensures a more extensive reach for your content.
- Energy-efficient and Durable: Equipped with an LED backlight, the display is energy efficient and has an extended operational life, reducing maintenance costs and downtime.
- Wide Range of Connectivity Options: Multiple connectivity options, including HDMI, VGA, USB, LAN, and RS232, provide versatility and ease of integration with other systems or third-party software.
- User-friendly Interface: The system is designed for quick and straightforward setup, with a user-friendly interface that enables easy control and customization for content display and scheduling.
Application of 43.8-inch 1000 nits stretch TFT LCD digital signage
The 43.8-inch 1000 nits stretch TFT LCD digital signage is suitable for a wide range of applications, including but not limited to:
- Retail environments: Showcasing product promotions, sales, or informative content on the shop floor, in product displays, or storefront windows.
- Transit hubs: Displaying real-time transit information, such as timetables, train or bus routes, and other relevant public transportation updates.
- Public venues and corporate buildings: Providing wayfinding and directory information for customers, guests, and employees to facilitate better navigation.
- Outdoor advertisement: Capturing attention and engaging potential customers in high-traffic, outdoor areas like shopping malls, stadiums, or pedestrian walkways.
- Hospitality and entertainment venues: Sharing menus, event schedules, or promotional content in restaurants, hotels, or theaters.
43.8 inch 1000 nits stretch TFT LCD digital signage Supplier
Technology Co.,Ltd. is a professional LED display and LCD display solution supplier.The 43.8-inch 1000 nits stretch TFT LCD digital signage is an innovative, high-performance display solution designed to meet the various communication needs of today’s businesses. With its unmatched brightness, slim form factor, and versatile applications, there are endless possibilities for enhancing your brand and increasing customer engagement.If you need a high-quality High Brightness LCD Panel to perfect your project, please contact us and we will provide you with a complete LCD display customization solution.
| 43.8 inch 1000 nits stretch TFT LCD digital signage | |
| Screen Size | 43.8inch |
| Active Area | 1071*301(mm) |
| Outline | 1101*331*49(mm) |
| Screen Type | a-Si TFT-LCD |
| Pixel Number | 3840*1080 |
| Aspect Ratio | 32:9 |
| Luminance | 1000 cd/m2 |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Color Depth | 1.07B 68% NTSC |
| Response | 8 (Typ.)(G to G) ms |
| Pixel Pitch | 0.279*0.279(mm) |
| Mainboard | |
| CPU | 972 |
| Ram | 2 |
| Flash | 16 |
| O/S | 9 |
| Interface | USB*2/TF/Audio/RJ45//DC IN/TF |
| Machine | |
| Appearance and Structure | sheet metal |
| Color | Black, white, customized |
| Peripheral | WIFI,touch (optional) |
| Power supply | AC110V-220 |
| Power consumption | ≦50W |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Installation method | Wall hanging |
| Net weight | 11Kg |
| Corton size | 1230*650*210(mm) |
| Number of boxes | 2PCS/Corton |
| Corton weight | 25Kg |
Project Support
Support Before Production And Delivery
Configuration Review
Match the product to viewing distance, brightness, content, installation environment, maintenance access, and control requirements.
Factory Verification
Confirm the approved model, cabinet quantity, accessories, visual checks, and project-specific inspection requirements before shipment.
Delivery Preparation
Review packing, spare parts, shipping information, installation documents, warranty terms, and support contacts in the final quotation.
Applications
Typical Project Applications
- Window-facing retail advertising
- Outdoor information kiosks and digital signage
- Transport and passenger-information displays
- Open-frame and custom commercial installations

Project Quotation
Tell Us About Your Project
For a useful comparison, share the screen size, application, viewing distance, installation place, destination country, and target delivery date.
- Recommended model and configuration
- Commercial quotation and lead-time confirmation
- Packing, spare-parts, and shipping planning
Email: info@sxleddisplay.com
WhatsApp: +86 15617669952
Buying Guide
Common Questions Before Quotation
How do I choose the right specification?
Share the screen size, viewing distance, indoor or outdoor environment, content type, and installation method. We can suggest pixel pitch, brightness, cabinet type, and control system options.
Can the product be customized?
Yes. Cabinet size, brightness, installation structure, maintenance direction, packaging, spare parts, and control system can be discussed according to the project.
What should I send for a quote?
Please send product model, screen width and height, usage location, target delivery time, and any drawing or project photo. Clear project details make the quotation faster and more accurate.
