Stretch High Brightness TFT LCD Panel

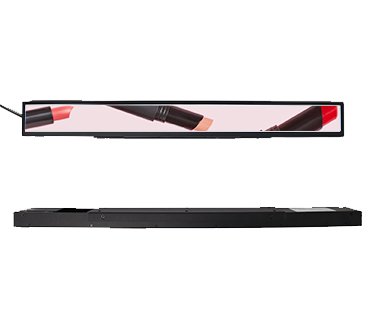

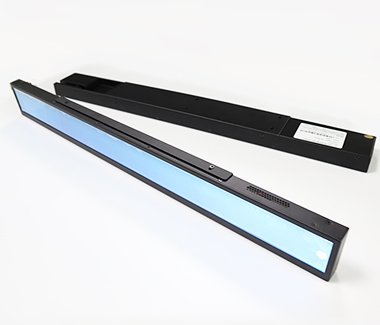

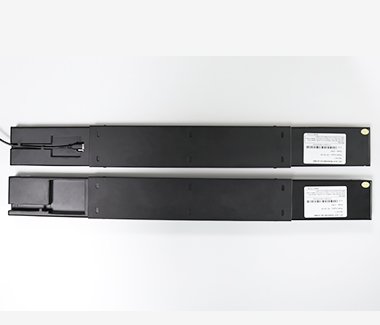

23.1 inch stretch high brightness LCD display for shelf
23.1 inch stretch high brightness LCD display for shelf is supplied for commercial display projects that need stable image quality, reliable structure, and practical after-sales support.
Best for: Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.
- Screen size
- 23.1 inch
- Brightness
- 1000 nits
- Application
- Commercial LCD
Send screen size, application, destination country, and target delivery time for an accurate project quotation.
- Configuration support
- Pre-shipment inspection
- Spare-parts planning
Technical Overview
Key Product Specifications
| Screen Size | 23.1 inch |
|---|---|
| Brightness | 1000 nits |
| Resolution | Confirm native resolution by size and model |
| Mounting / Structure | Wall, open-frame, floor-standing, or project-specific options |
| Control System | Matched to content, connectivity, and project requirements |
How to read and verify these specifications
The information on this page is compiled from the available model content and project configuration data maintained by Shangxian Display. Values such as brightness, refresh rate, IP rating, cabinet structure, control system, warranty, and certificates can vary by model and project.
Confirm the final specification sheet and quotation before placing an order. Review our quality control process.
Selection Guide
Project Fit And Buying Inputs
Recommended Use
Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.
Confirm Before Selection
Confirm diagonal size, brightness, native resolution, operating hours, orientation, enclosure, mounting, and media connectivity.
Quotation Scope
Final specifications, packing, spare parts, lead time, warranty, and certificates are confirmed in the project quotation.
Read Full Product Description
What is 23.1 inch Stretch High Brightness LCD Display for Shelf?
The 23.1 inch stretch high brightness LCD display for shelf, also known as a “bar-type” or “stretched” display, is a unique ultra-wide aspect ratio screen specifically designed to fit on retail shelves. With its high brightness and crisp image quality, it is capable of delivering eye-catching content to customers, making it perfect for promoting products or displaying crucial information.
Features of 23.1 inch Stretch High Brightness LCD Display for Shelf
Ultra-wide Aspect Ratio The 23.1 inch stretch high brightness LCD display for shelf is characterized by its ultra-wide aspect ratio, which is ideal for compact and limited spaces found in retail stores. This allows for seamless integration into shelf layouts without taking up too much space or altering the overall store design. High Brightness This unique display features a high brightness level of up to 1000 nits, which ensures excellent visibility in diverse lighting conditions, from dimly-lit interiors to bright storefronts. This enhanced visibility ensures that customers are easily drawn to the displayed content, ultimately leading to increased engagement and potential sales. Crisp Image Quality Equipped with Full HD resolution and a variety of supported input sources, the 23.1 inch stretch high brightness LCD display for shelf delivers vivid and detailed graphics. This ensures that your promotional content is not only eye-catching but also clearly communicates your message to the target audience. Robust Design Designed with durability in mind, this display offers a long lifespan and is engineered to withstand the demands of a retail environment. It features a sturdy metal frame and robust components, ensuring reliable performance over time. User-friendly Interface The 23.1 inch stretch high brightness LCD display for shelf comes with an easy-to-use interface that allows for quick and straightforward content updates. With minimal training, store personnel will be capable of managing and updating the display regularly to maximize impact.
Application of 23.1 inch Stretch High Brightness LCD Display for Shelf
The 23.1 inch stretch high brightness LCD display for shelf has a versatile range of applications, including:
- Retail: The primary application is retail stores, where it can be used to promote sales items, showcase new products, provide nutritional information, or display pricing.
- Restaurants: Within the food and beverage industry, this display can be used to showcase menus, highlight daily specials, or provide information on nutritional and allergy content.
- Public Transportation: This display can be incorporated into airport terminals, train stations, or bus stops, displaying schedules, travel information, or advertisements.
- Corporate and Educational Institutions: Integrated into conference rooms, classrooms, or lobbies, this display can provide relevant information or promotional content to its target audience.
23.1 inch stretch high brightness LCD display for shelf Supplier
Technology Co.,Ltd. is a professional LED display and LCD display solution supplier.The 23.1 inch stretch high brightness LCD display for shelf is a versatile, high-quality, and efficient digital signage solution. With its attractive design, excellent performance, and range of applications, this display is undoubtedly an ideal choice for businesses seeking to engage customers and enhance their in-store experience.If you need a high-quality High Brightness LCD Panel to perfect your project, please contact us and we will provide you with a complete LCD display customization solution.
| Model Name | RS231VT-NE07 |
| Screen Size | 23.1 inch |
| Display Area (mm) | 585.6mm(H)*48.19mm(V) |
| Brightness | 500 cd/m 2 |
| Resolution | 1920(RGB)×540, 40PPI |
| Aspect Ratio | ≥3:1 |
| Contrast Ratio | ≥1000:1 |
| Viewing Angle | 178°(H),178°(V) |
| Color Saturation | 16.7M 50% NTSC |
| Display Colors | 16.7M |
| Response Time (Typical) | 8 (Typ.)(G to G) |
| Input Interface | Mirco-USB, TF, Reboot button |
| Input Power | DC12V, 2A |
| Power Consumption | ≤18W |
| Dimensions (mm) | 598.62*65.4*21.50mm |
| Mounting | With mounting bracket |
| Weight (Net) | 1.2KG |
| Operating Temperature | 0 ˚ C ~ 50 ˚ C |
| Storage Temperature | 0 ˚ C ~ 60 ˚ C |
Project Support
Support Before Production And Delivery
Configuration Review
Match the product to viewing distance, brightness, content, installation environment, maintenance access, and control requirements.
Factory Verification
Confirm the approved model, cabinet quantity, accessories, visual checks, and project-specific inspection requirements before shipment.
Delivery Preparation
Review packing, spare parts, shipping information, installation documents, warranty terms, and support contacts in the final quotation.
Applications
Typical Project Applications
- Window-facing retail advertising
- Outdoor information kiosks and digital signage
- Transport and passenger-information displays
- Open-frame and custom commercial installations

Project Quotation
Tell Us About Your Project
For a useful comparison, share the screen size, application, viewing distance, installation place, destination country, and target delivery date.
- Recommended model and configuration
- Commercial quotation and lead-time confirmation
- Packing, spare-parts, and shipping planning
Email: info@sxleddisplay.com
WhatsApp: +86 15617669952
Buying Guide
Common Questions Before Quotation
How do I choose the right specification?
Share the screen size, viewing distance, indoor or outdoor environment, content type, and installation method. We can suggest pixel pitch, brightness, cabinet type, and control system options.
Can the product be customized?
Yes. Cabinet size, brightness, installation structure, maintenance direction, packaging, spare parts, and control system can be discussed according to the project.
What should I send for a quote?
Please send product model, screen width and height, usage location, target delivery time, and any drawing or project photo. Clear project details make the quotation faster and more accurate.
