18.5 inch industrial high brightness LCD panel

Industrial High Brightness LCD Panel

18.5 inch industrial high brightness LCD panel

18.5 inch industrial high brightness LCD panel is supplied for commercial display projects that need stable image quality, reliable structure, and practical after-sales support.

Best for: Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

Screen size
18.5 inch
Brightness
1000 cd/m2
Resolution
1920 x 1080

Send screen size, application, destination country, and target delivery time for an accurate project quotation.

  • Configuration support
  • Pre-shipment inspection
  • Spare-parts planning

Technical Overview

Key Product Specifications

Screen Size18.5 inch
Brightness1000 cd/m2
Resolution1920 x 1080
Mounting / StructureWall, open-frame, floor-standing, or project-specific options
Control SystemMatched to content, connectivity, and project requirements
How to read and verify these specifications

The information on this page is compiled from the available model content and project configuration data maintained by Shangxian Display. Values such as brightness, refresh rate, IP rating, cabinet structure, control system, warranty, and certificates can vary by model and project.

Confirm the final specification sheet and quotation before placing an order. Review our quality control process.

Selection Guide

Project Fit And Buying Inputs

01

Recommended Use

Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

02

Confirm Before Selection

Confirm diagonal size, brightness, native resolution, operating hours, orientation, enclosure, mounting, and media connectivity.

03

Quotation Scope

Final specifications, packing, spare parts, lead time, warranty, and certificates are confirmed in the project quotation.

Read Full Product Description

What is 18.5 inch Industrial High Brightness LCD Panel?

An 18.5 inch industrial high brightness LCD panel refers to a high-quality LCD display designed specifically for use in industrial environments. This type of panel features an 18.5 inch large size screen, enhanced brightness, and exceptional durability to withstand harsh conditions and deliver superior display performance.

Features of 18.5 inch Industrial High Brightness LCD Panel

The 18.5 inch industrial high brightness LCD panel comes packed with several features to ensure optimal performance, these include: High Brightness: With a significantly higher brightness level as compared to standard LCD panels, this industrial-grade display provides excellent readability and visibility, even in direct sunlight or brightly lit environments, making it perfect for outdoor applications. Wide Viewing Angle: The 18.5 inch LCD panel boasts a wide viewing angle, allowing clear images and text to be visible from various viewpoints, increasing user convenience and accessibility. Rugged Construction: Designed to withstand harsh industrial environments, the panel features a robust metal frame, providing a high level of protection against vibration, shock, and other challenging conditions. Low Power Consumption: Operating at lower power usage, this LCD panel ensures energy efficiency and reduced operating costs. High Resolution: The 18.5 inch industrial high brightness LCD panel delivers crisp, clear, and accurate images with a high resolution of up to 1920 x 1080 HD, providing a more immersive viewing experience. Wide Temperature Range: This LCD panel can operate in a wide temperature range, ensuring stability and reliability even in extreme temperature fluctuations or environments. Extended Lifetime: With a longer lifespan than conventional LCD panels, the 18.5 inch industrial high brightness LCD panel is guaranteed to provide long-lasting performance, making it an ideal investment for industrial applications.

Application of 18.5 inch Industrial High Brightness LCD Panel

The 18.5 inch industrial high brightness LCD panel offers a versatile solution for a variety of scenarios and industries. Some of the common applications include: Outdoor Kiosks: The high brightness and ruggedness of the panel make it ideal for outdoor advertising displays and information stations. Transportation: The panel’s durability and superior performance make it a perfect choice for use in transportation systems like railways, airports, and shipping ports, where clear information is crucial. Factory Automation: With its wide temperature range, low power consumption, and long lifespan, the panel is a suitable option for optimizing control rooms and monitoring stations in industrial settings. Medical Imaging: The high-resolution display ensures excellent image quality in diagnostics and monitoring, making it ideal for use in medical imaging devices. Marine Applications: Built to withstand harsh environments, the 18.5 inch industrial high brightness LCD panel is perfect for navigation equipment and control systems in the maritime industry.

18.5 inch industrial high brightness LCD panel Supplier

Technology Co.,Ltd. is a professional LED display and LCD display solution supplier.Featuring exceptional brightness, durability, and versatility, the 18.5 inch industrial high brightness LCD panel is a reliable and cost-effective option for businesses in need of a superior display solution.If you need a high-quality High Brightness LCD Panel to perfect your project, please contact us and we will provide you with a complete LCD display customization solution.

Screen Diagonal18.5 inch
BrandRisingLCD
Model NoRS185HAN-GE10
Active Area408.96(W)×230.04(H) mm
Resolution1920(RGB)×1080, FHD, 119PPI
Physical Size430.4(W)×254.6(H)×12.5(D) mm
Pixel ArrangementR.G.B. Vertical Stripe
Display Modea-Si TFT-LCD, LCM
Contrast Ratio :1000:1
White Luminance ( Center )1000 cd/m2 (Typ.) [cd/m2 ]
Optical Response Time10/10 (Typ.)(Tr/Td) ms
Nominal Input Voltage5.0V (Typ.)
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Power (watt)21W
Weight [kg]1.20kgs
Interface Type30 pins LVDS (2 ch, 8-bit)
Support Color16.7M , 99% sRGB
Surface TreatmentMatte, Hard coating (3H)
RoHS ComplianceRoHS Compliance
Temperature Range-20 ~70 °C
Storage (Non-Operating)-20 ~ 70 °C

Project Support

Support Before Production And Delivery

01

Configuration Review

Match the product to viewing distance, brightness, content, installation environment, maintenance access, and control requirements.

02

Factory Verification

Confirm the approved model, cabinet quantity, accessories, visual checks, and project-specific inspection requirements before shipment.

03

Delivery Preparation

Review packing, spare parts, shipping information, installation documents, warranty terms, and support contacts in the final quotation.

Applications

Typical Project Applications

  • Window-facing retail advertising
  • Outdoor information kiosks and digital signage
  • Transport and passenger-information displays
  • Open-frame and custom commercial installations

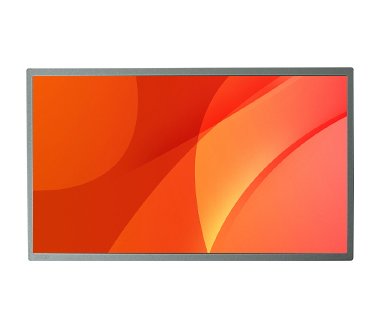

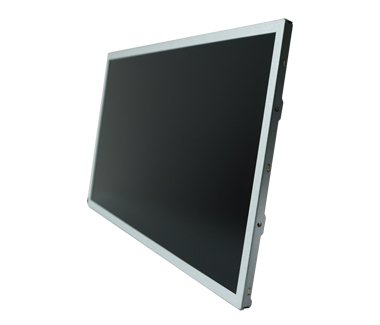

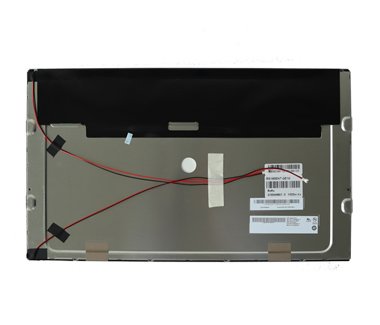

18.5 inch industrial high brightness LCD panel product view

Project Quotation

Tell Us About Your Project

For a useful comparison, share the screen size, application, viewing distance, installation place, destination country, and target delivery date.

  • Recommended model and configuration
  • Commercial quotation and lead-time confirmation
  • Packing, spare-parts, and shipping planning

Email: info@sxleddisplay.com

WhatsApp: +86 15617669952

Add project details for a faster quote (optional)

Buying Guide

Common Questions Before Quotation

How do I choose the right specification?

Share the screen size, viewing distance, indoor or outdoor environment, content type, and installation method. We can suggest pixel pitch, brightness, cabinet type, and control system options.

Can the product be customized?

Yes. Cabinet size, brightness, installation structure, maintenance direction, packaging, spare parts, and control system can be discussed according to the project.

What should I send for a quote?

Please send product model, screen width and height, usage location, target delivery time, and any drawing or project photo. Clear project details make the quotation faster and more accurate.
