High Brightness TFT LCD Panel

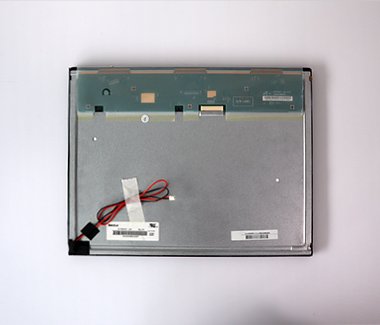

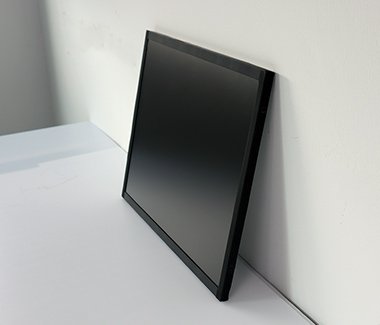

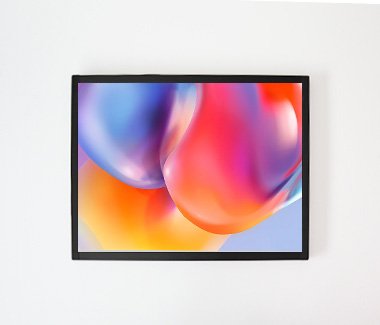

15 Inch high brightness TFT LCD panel

15 Inch high brightness TFT LCD panel is supplied for commercial display projects that need stable image quality, reliable structure, and practical after-sales support.

Best for: Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

Screen size: 15 Inch, 15 inches
Brightness: 1500 nits, 1000 cd/m2
Application: Commercial LCD

Send screen size, application, destination country, and target delivery time for an accurate project quotation.

Configuration support
Pre-shipment inspection
Spare-parts planning

Technical Overview

Key Product Specifications

Screen Size	15 Inch, 15 inches
Brightness	1500 nits, 1000 cd/m2
Resolution	Confirm native resolution by size and model
Mounting / Structure	Wall, open-frame, floor-standing, or project-specific options
Control System	Matched to content, connectivity, and project requirements

How to read and verify these specifications

The information on this page is compiled from the available model content and project configuration data maintained by Shangxian Display. Values such as brightness, refresh rate, IP rating, cabinet structure, control system, warranty, and certificates can vary by model and project.

Confirm the final specification sheet and quotation before placing an order. Review our quality control process.

Selection Guide

Project Fit And Buying Inputs

Recommended Use

Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

Confirm Before Selection

Confirm diagonal size, brightness, native resolution, operating hours, orientation, enclosure, mounting, and media connectivity.

Quotation Scope

Final specifications, packing, spare parts, lead time, warranty, and certificates are confirmed in the project quotation.

Read Full Product Description

What is a 15 Inch High Brightness TFT LCD Panel?

The 15 Inch High Brightness TFT LCD Panel is a thin-film-transistor liquid crystal display (TFT LCD) with a screen size measuring 15 inches diagonally. This high-brightness display combines excellent contrast, saturation, and sharpness, as well as a wide viewing angle, making it suitable for a range of demanding, high-resolution applications. Using advanced backlight technology, this panel ensures an easily visible image, even in harsh and bright environments.

Features of the 15 Inch High Brightness TFT LCD Panel

The 15 Inch High Brightness TFT LCD Panel boasts an array of impressive features, which include: High Resolution: This panel offers an exceptional resolution of 1024×768, resulting in crisp and clear images, suitable for a variety of applications. High Brightness: With a brightness level that ranges from 1000 to 1500 nits, this TFT LCD panel provides superior visibility, enabling users to view content clearly, even in locations subject to intense sunlight or bright lighting conditions. Wide Viewing Angle: The panel has a wide viewing angle of 178°, allowing users to view the display from virtually any position without experiencing loss of image quality or color accuracy. Superior Image Quality: The rich color reproduction and high contrast ratio of this TFT LCD panel provide outstanding image quality and intensity, resulting in vibrant visuals and clear, sharp images. Robust and Durable: Given its reliable construction and high-quality materials, this panel has proven to be an enduring piece of technology, withstanding the test of time and environmental rigors. Energy-efficient: Utilizing advanced backlight technology, the 15 Inch High Brightness TFT LCD Panel not only provides exceptional brightness but also consumes lower power as compared to its competitors, proving to be a cost-effective solution.

Applications of the 15 Inch High Brightness TFT LCD Panel

The superior features of a 15 Inch High Brightness TFT LCD Panel make it an ideal choice for a wide range of applications: Industrial and Manufacturing: This panel can be integrated into industrial control systems, factory automation displays, and other equipment used in production settings. Kiosks and Digital Signage: Due to its high-resolution and brightness, the panel is perfect for interactive kiosks, digital menu boards, and outdoor advertising displays. Transportation: With its excellent visibility, this panel is suitable for use in transportation facilities like airport displays, train stations, or as dashboard screens in automobiles. Medical Equipment: Its high-resolution and sharp image make the panel a prime choice for use in medical imaging devices, such as diagnostic tools or clinical monitoring systems. Gaming and Entertainment: Gaming devices, casino machines, and multimedia entertainment systems can benefit from the panel’s excellent image quality and wide viewing angle.

15 Inch high brightness TFT LCD panel Supplier

Technology Co.,Ltd. is a professional LED display and LCD display solution supplier.The 15 Inch High Brightness TFT LCD Panel combines numerous outstanding features, making it a versatile display solution for a range of professional and consumer applications. With exceptional brightness, image quality, and durability, this panel is the perfect choice for users looking to enhance their viewing experiences.If you need a high-quality High Brightness LCD Panel to perfect your project, please contact us and we will provide you with a complete LCD display customization solution.

Screen Diagonal	15 inch
Brand	Confirmed per project
Model No	RS150XGE-GE10
Active Area	307.4(W)×231.3(H) mm
Resolution	1024(RGB)×768, XGA 105PPI
Physical Size	326.5(W)× 253.5(H)×12(D) mm
Pixel Arrangement	R.G.B. Vertical Stripe
Display Mode	a-Si TFT-LCD, LCM
Contrast Ratio :	1500:1
White Luminance ( Center )	1000 cd/m2 (Typ.) [cd/m2 ]
Optical Response Time	3/5 (Typ.)(Tr/Td)
Nominal Input Voltage	3.3V (Typ.)
Frame Rate	60Hz
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Weight [kg]	/
Interface Type	LVDS (1 ch, 6/8-bit) , 30 pins Connector
Support Color	262K/16.2M
Surface Treatment	Antiglare, Hard coating (3H)
RoHS Compliance	RoHS Compliance
Working Temperature Range	-20 ~60 °C
Storage (Non-Operating)	-20 ~ 70 °C

Project Support

Support Before Production And Delivery

Configuration Review

Match the product to viewing distance, brightness, content, installation environment, maintenance access, and control requirements.

Factory Verification

Confirm the approved model, cabinet quantity, accessories, visual checks, and project-specific inspection requirements before shipment.

Delivery Preparation

Review packing, spare parts, shipping information, installation documents, warranty terms, and support contacts in the final quotation.

Applications

Typical Project Applications

Window-facing retail advertising
Outdoor information kiosks and digital signage
Transport and passenger-information displays
Open-frame and custom commercial installations

Project Quotation

Tell Us About Your Project

For a useful comparison, share the screen size, application, viewing distance, installation place, destination country, and target delivery date.

Recommended model and configuration
Commercial quotation and lead-time confirmation
Packing, spare-parts, and shipping planning

Email: info@sxleddisplay.com

WhatsApp: +86 15617669952

Buying Guide

Common Questions Before Quotation

How do I choose the right specification?

Share the screen size, viewing distance, indoor or outdoor environment, content type, and installation method. We can suggest pixel pitch, brightness, cabinet type, and control system options.

Can the product be customized?

Yes. Cabinet size, brightness, installation structure, maintenance direction, packaging, spare parts, and control system can be discussed according to the project.

What should I send for a quote?

Please send product model, screen width and height, usage location, target delivery time, and any drawing or project photo. Clear project details make the quotation faster and more accurate.
