Industrial High Brightness LCD Panel

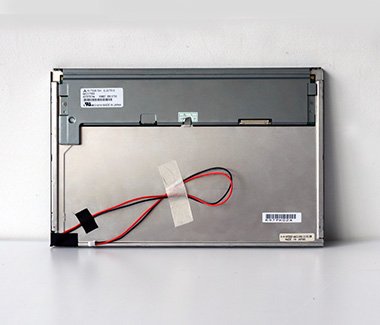

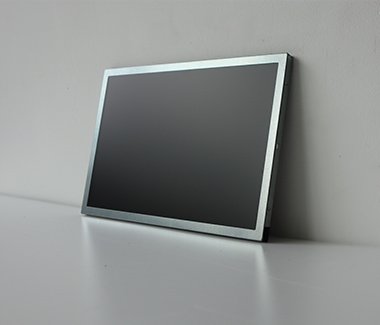

12.1 inch industrial high brightness LCD panel

12.1 inch industrial high brightness LCD panel is supplied for commercial display projects that need stable image quality, reliable structure, and practical after-sales support.

Best for: Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

Screen size: 12.1 inch
Brightness: 000 nits, 500 nits
Application: Commercial LCD

Send screen size, application, destination country, and target delivery time for an accurate project quotation.

Configuration support
Pre-shipment inspection
Spare-parts planning

Technical Overview

Key Product Specifications

Screen Size	12.1 inch
Brightness	000 nits, 500 nits
Resolution	Confirm native resolution by size and model
Mounting / Structure	Wall, open-frame, floor-standing, or project-specific options
Control System	Matched to content, connectivity, and project requirements

How to read and verify these specifications

The information on this page is compiled from the available model content and project configuration data maintained by Shangxian Display. Values such as brightness, refresh rate, IP rating, cabinet structure, control system, warranty, and certificates can vary by model and project.

Confirm the final specification sheet and quotation before placing an order. Review our quality control process.

Selection Guide

Project Fit And Buying Inputs

Recommended Use

Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

Confirm Before Selection

Confirm diagonal size, brightness, native resolution, operating hours, orientation, enclosure, mounting, and media connectivity.

Quotation Scope

Final specifications, packing, spare parts, lead time, warranty, and certificates are confirmed in the project quotation.

Read Full Product Description

What is a 12.1-inch industrial high brightness LCD panel?

A 12.1 inch industrial high brightness LCD (liquid crystal display) panel is an advanced display solution specifically designed for industrial and outdoor applications where readability, durability, and performance are critical. With a 12.1-inch screen size, it offers users an optimal viewing experience without being overly bulky. Its high brightness ensures excellent readability, even under direct sunlight or harsh lighting conditions.

Features of the 12.1-inch industrial high brightness LCD panel

The 12.1-inch industrial high brightness LCD panel offers a wide range of features to cater to varying industrial needs: High brightness: The key feature of this panel is its brightness which typically ranges from 1,000 nits to 1,500 nits, ensuring excellent readability under direct sunlight or harsh lighting conditions. Wide viewing angle: The panel often employs an IPS (in-plane switching) technology, assuring a wide viewing angle and consistent color reproduction. High resolution: This LCD panel typically boasts a high resolution, ensuring sharp and clear images, which is crucial for industrial applications. Rugged design: The 12.1-inch industrial high brightness LCD panel is designed to withstand harsh conditions, including extreme temperatures, humidity, and vibrations. Its housing is generally made of either aluminum or other robust materials for added durability. Variable power input: The panel typically supports a wide range of power input voltages, making it compatible with various power sources. Easy integration: This panel features industry-standard interfaces like VGA, HDMI, or DVI for easy integration with industrial systems. Optional touch functionality: The panel may also be incorporated with touch functionality, such as resistive or capacitive touchscreens, providing an interactive user experience. Customization: Manufacturers can offer customizations, such as varying brightness levels, colors, and housings, to suit specific client requirements.

Applications of the 12.1-inch industrial high brightness LCD panel

The 12.1-inch industrial high brightness LCD panel is highly popular in diverse industrial and outdoor applications. Some examples include: Outdoor digital signage: The high brightness and rugged design make it suitable for showcasing information or advertisements in outdoor settings. Traffic control systems: High brightness characteristics and clear visuals make it suitable for use in traffic management and monitoring solutions. Industrial control systems: The panel can be implemented in process automation, manufacturing, and quality control systems, ensuring clear visibility and easy monitoring. Medical devices: The high-resolution display is perfect for medical imaging or monitoring equipment that requires optimal image clarity. Marine applications: The panel’s rugged design and high brightness make it ideal for navigation, surveillance, and communication systems on ships and submarines.

12.1 inch industrial high brightness LCD panel Supplier

Technology Co.,Ltd. is a professional LED display and LCD display solution supplier.The 12.1-inch industrial high brightness LCD panel offers a perfect blend of readability, durability, and adaptability, making it a valuable tool for a wide range of applications that demand high performance display solutions.If you need a high-quality High Brightness LCD Panel to perfect your project, please contact us and we will provide you with a complete LCD display customization solution.

Screen Diagonal	12.1 inch
Brand	Confirmed per project
Model No	RS121TD02-GE10
Active Area	261.12(W)×163.2(H) mm
Resolution	1280(RGB)×800, WXGA, 124PPI
Physical Size	283(W)×185.1(H)×10.2(D) mm
Pixel Arrangement	R.G.B. Vertical Stripe
Display Mode	a-Si TFT-LCD, LCM
Contrast Ratio :	700:1
White Luminance ( Center )	1000 nits
Optical Response Time	4/12 (Typ.)(Tr/Td) ms
Nominal Input Voltage	3.3V (Typ.)
Frame Rate	60Hz
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Weight [g]	620g(Typ.)
Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Support Color	262K/16.7M , 40% NTSC
Surface Treatment	Antiglare,Hard coating (2H)
RoHS Compliance	RoHS Compliance
Temperature Range	-30 ~80 °C
Storage (Non-Operating)	-30 ~ 80 °C

Project Support

Support Before Production And Delivery

Configuration Review

Match the product to viewing distance, brightness, content, installation environment, maintenance access, and control requirements.

Factory Verification

Confirm the approved model, cabinet quantity, accessories, visual checks, and project-specific inspection requirements before shipment.

Delivery Preparation

Review packing, spare parts, shipping information, installation documents, warranty terms, and support contacts in the final quotation.

Applications

Typical Project Applications

Window-facing retail advertising
Outdoor information kiosks and digital signage
Transport and passenger-information displays
Open-frame and custom commercial installations

Project Quotation

Tell Us About Your Project

For a useful comparison, share the screen size, application, viewing distance, installation place, destination country, and target delivery date.

Recommended model and configuration
Commercial quotation and lead-time confirmation
Packing, spare-parts, and shipping planning

Email: info@sxleddisplay.com

WhatsApp: +86 15617669952

Buying Guide

Common Questions Before Quotation

How do I choose the right specification?

Share the screen size, viewing distance, indoor or outdoor environment, content type, and installation method. We can suggest pixel pitch, brightness, cabinet type, and control system options.

Can the product be customized?

Yes. Cabinet size, brightness, installation structure, maintenance direction, packaging, spare parts, and control system can be discussed according to the project.

What should I send for a quote?

Please send product model, screen width and height, usage location, target delivery time, and any drawing or project photo. Clear project details make the quotation faster and more accurate.
