18.5 inch high brightness TFT LCD monitor

High Brightness Open Frame Monitor

18.5 inch high brightness TFT LCD monitor

18.5 inch high brightness TFT LCD monitor is supplied for commercial display projects that need stable image quality, reliable structure, and practical after-sales support.

Best for: Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

Screen size
18.5 inch
Brightness
1000 nits
Resolution
1366 x 768

Send screen size, application, destination country, and target delivery time for an accurate project quotation.

  • Configuration support
  • Pre-shipment inspection
  • Spare-parts planning

Technical Overview

Key Product Specifications

Screen Size18.5 inch
Brightness1000 nits
Resolution1366 x 768
Mounting / StructureWall, open-frame, floor-standing, or project-specific options
Control SystemMatched to content, connectivity, and project requirements
How to read and verify these specifications

The information on this page is compiled from the available model content and project configuration data maintained by Shangxian Display. Values such as brightness, refresh rate, IP rating, cabinet structure, control system, warranty, and certificates can vary by model and project.

Confirm the final specification sheet and quotation before placing an order. Review our quality control process.

Selection Guide

Project Fit And Buying Inputs

01

Recommended Use

Retail, transport, hospitality, and information projects that need a high-resolution commercial LCD format.

02

Confirm Before Selection

Confirm diagonal size, brightness, native resolution, operating hours, orientation, enclosure, mounting, and media connectivity.

03

Quotation Scope

Final specifications, packing, spare parts, lead time, warranty, and certificates are confirmed in the project quotation.

Read Full Product Description

What is 18.5 inch high brightness TFT LCD monitor?

The 18.5 inch high brightness TFT LCD monitor is a highly specialized display system designed with a great combination of size, power, and performance. With an 18.5-inch screen size, the monitor offers high-resolution visuals, making it an ideal choice for a wide range of applications. TFT (Thin-Film Transistor) technology provides improved image quality and rapid response times, while the high brightness levels lead to crisp, clear visuals in well-lit environments.

Features of 18.5 inch high brightness TFT LCD monitor

Some of the most notable features found in the 18.5 inch high brightness TFT LCD monitor include: High Brightness: With levels reaching up to 1000 nits (a nit is a unit of measurement for brightness), the screen can produce vivid images even in challenging lighting conditions, such as direct sunlight or brightly lit areas. High Resolution: The 18.5 inch screen supports a 1366 x 768 resolution, ensuring that images and text are crisp and clear, making it suitable for detailed applications. Wide Viewing Angles: The monitor features wide viewing angles of 178°(H)/178°(V), which means that the image quality remains consistent even when viewed from different angles. Advanced TFT Technology: Equipped with advanced TFT technology, this monitor provides a highly responsive display with excellent color reproduction and minimal distortion. Versatility: The 18.5 inch high brightness TFT LCD monitor can be easily integrated with various mounting systems and is compatible with a range of input signals, such as VGA, HDMI, and DVI-D. Durability: Built with reliable components and a sturdy frame, this monitor is designed for long-lasting performance in various scenarios.

Application of 18.5 inch high brightness TFT LCD monitor

Due to its excellent features, the 18.5 inch high brightness TFT LCD monitor can be used in various applications. Some of these include: Outdoor Kiosks: With high brightness levels, these monitors are perfect for outdoor kiosks that need to perform well under direct sunlight and have easily readable displays. Digital Signage: Digital advertising displays in busy locations with strong ambient light will benefit from the high brightness and wide viewing angles offered by the 18.5 inch TFT LCD monitors. Industrial Control: In industrial settings, the high brightness display allows for easy viewing and monitoring of complex machinery, boosting productivity and safety. Medical Devices: Dealing with high resolutions and accurate color reproduction is essential in fields such as healthcare, where this monitor can be effectively employed as a display for medical imaging devices. Security Systems: The 18.5 inch high brightness TFT LCD monitor is perfect for use in security systems where surveillance footage needs to be clear and visible in well-lit environments.

18.5 inch high brightness TFT LCD monitor Supplier

Technology Co.,Ltd. is a professional LED display and LCD display solution supplier.The 18.5 inch high brightness TFT LCD monitor offers unparalleled performance for various applications. With its combination of high brightness, responsiveness, and advanced technology, it is the ideal choice for many demanding scenarios.If you need a high-quality High Brightness LCD Panel to perfect your project, please contact us and we will provide you with a complete LCD display customization solution.

Model NameRS18.5-MH00XT01BK
Screen Size18.5 inch
Display Area (mm)409.8(H) x 230.4(V)
Brightness1000 cd/m
Resolution1920*1080
Aspect Ratio16:9
Contrast Ratio1000:1
Pixel Pitch (mm)0.213(H) x 0.213(V)
Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Color Saturation (NTSC)70%
Display Colors16.7M
Response Time (Typical)30(Typ.)(Tr/Td) ms
Input InterfaceHDMI*1 VGA*1 AUDIO IN*1 HDMI*1DVI*1 DCIN*1
Touch (optional)NC 2MM Tempered Glass
CPUNC
MemoryNC
SDDNC
SystemNC
Input PowerDC 12v
Power Consumption21.5W
Dimensions (mm)482 x 302 x 61
Mounting75*75/100*100
Weight (Net)3.5KGS
Operating Temperature-20 ˚ C ~ 70 ˚ C
Storage Temperature-30 ˚ C ~ 80 ˚ C

Project Support

Support Before Production And Delivery

01

Configuration Review

Match the product to viewing distance, brightness, content, installation environment, maintenance access, and control requirements.

02

Factory Verification

Confirm the approved model, cabinet quantity, accessories, visual checks, and project-specific inspection requirements before shipment.

03

Delivery Preparation

Review packing, spare parts, shipping information, installation documents, warranty terms, and support contacts in the final quotation.

Applications

Typical Project Applications

  • Window-facing retail advertising
  • Outdoor information kiosks and digital signage
  • Transport and passenger-information displays
  • Open-frame and custom commercial installations

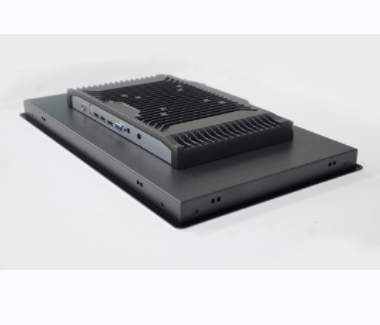

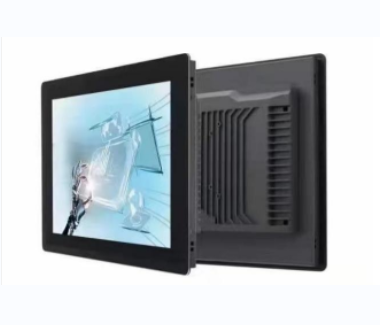

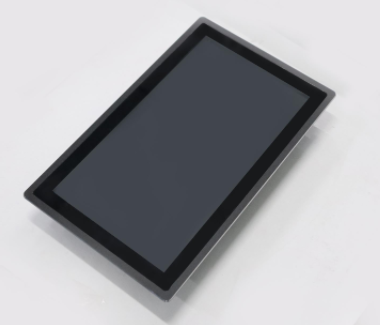

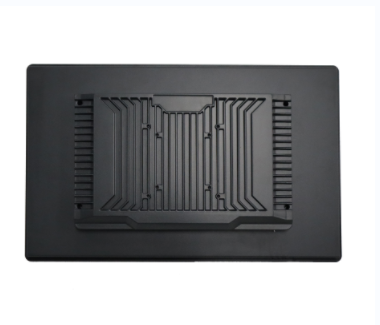

18.5 inch high brightness TFT LCD monitor product view

Project Quotation

Tell Us About Your Project

For a useful comparison, share the screen size, application, viewing distance, installation place, destination country, and target delivery date.

  • Recommended model and configuration
  • Commercial quotation and lead-time confirmation
  • Packing, spare-parts, and shipping planning

Email: info@sxleddisplay.com

WhatsApp: +86 15617669952

Add project details for a faster quote (optional)

Buying Guide

Common Questions Before Quotation

How do I choose the right specification?

Share the screen size, viewing distance, indoor or outdoor environment, content type, and installation method. We can suggest pixel pitch, brightness, cabinet type, and control system options.

Can the product be customized?

Yes. Cabinet size, brightness, installation structure, maintenance direction, packaging, spare parts, and control system can be discussed according to the project.

What should I send for a quote?

Please send product model, screen width and height, usage location, target delivery time, and any drawing or project photo. Clear project details make the quotation faster and more accurate.
